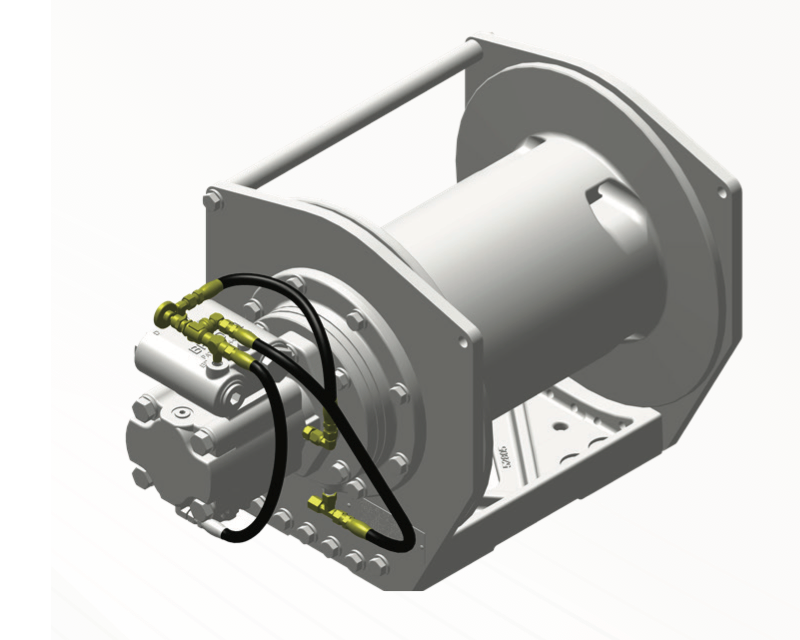

Braden PD12C Planetary Hoist — 12,000 lb Hydraulic Winch
Braden PD12C Planetary Hoist — 12,000 lb Hydraulic Winch
The PD12C is the workhorse of the PD range and the most configurable unit Braden builds in this class. Four gear ratios from 21:1 to 59:1, seven motor displacements including a two-speed option, and four drum sizes. Unit weight runs anywhere from 375 to 1,030 lb depending on the build — a spread wide enough that mounting design has to wait until the configuration is settled.
At 12,000 lb and 160 fpm on layer 1, it covers the same capacity as a Gearmatic GM12A but in a power drum layout with freefall available, which the GM range doesn't offer.
Both freefall and controlled freefall are options. On a crane or drill rig where the load needs to run out under gravity, that's not a nice-to-have — specify it up front, since it isn't retrofittable.
We stock, install and service these — call with your application and we'll spec it.
Configuration
Four gear ratios, seven motor options, four drum sizes, freefall and controlled freefall available, grooved drum or tension roller, API 2c optional. Tell us your available flow and pressure, rope diameter and length, whether you need freefall, and your mounting arrangement.
Specifications
| Rated line pull | 12,000 lb (5,443 kg) |
| Gear ratios | 21:1, 29:1, 41:1, 59:1 |
| Standard motors | 2.94, 3.43, 3.92, 5.1, 6.38, 8.0 CID, plus 2-speed |
| Unit weight | 375–1,030 lb (170–467 kg) |
| Rope diameters | 3/8", 7/16", 1/2", 9/16" (10–14 mm) |
| Drum 01 | 9.75" barrel × 14" flange × 13.75" between flanges |
| Drum 02 / 02G | 9.75" barrel × 16.38" flange × 13.75" between flanges |
| Drum 04 | 10.63" barrel × 20" flange × 13.5" between flanges |
| Drum 05 | 10.63" barrel × 16.5" flange × 13.5" between flanges |
| Drum capacity | 431 ft of 3/8" · 307 ft of 9/16" (layer 4) |
| Freefall | Freefall (FF) or controlled freefall (CF) |
| Cable management | Grooved drum or tension roller |
| API 2c compliant | Yes (optional) |
| Overall length | 27.25" (692 mm) |
| Overall width | 16.5" (419 mm) |
| Height | 18.19" (462 mm) |
Performance
Layer 1: 12,000 lb at 160 fpm
Layer 4: 9,280 lb at 207 fpm
Rated at 2,400 psi, 65 gpm, 1/2" rope, 3.92 CID motor. Drum capacity per ANSI/ASME. Actual performance varies with your hydraulic system, motor, drum and cable.
