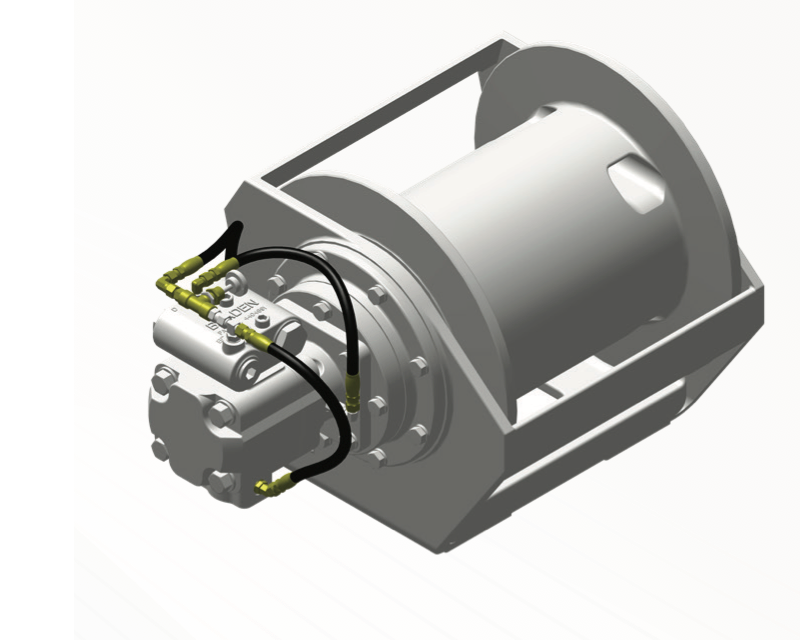

Braden PD15B Planetary Hoist — 15,000 lb Hydraulic Winch
Braden PD15B Planetary Hoist — 15,000 lb Hydraulic Winch
The PD15B pulls 15,000 lb at 193 fpm on layer 1 — fast for the capacity — and does it from a unit that weighs 270 lb in the short configuration or 300 lb in the long. That power-to-weight ratio is the reason it turns up on mobile cranes where every pound on the boom costs capacity.
Four drum sizes are offered, including the 06 with 22.42" between flanges for long rope runs. On the 04 drum with 1/2" rope you get 465 ft at layer 5.
Two gear ratios, 41:1 and 34:1, with four motor displacements. Freefall and controlled freefall both available, as is a grooved drum for applications where spooling has to be tidy under load.
We stock, install and service these — call with your application and we'll spec it.
Configuration
Two gear ratios, four motor options, four drum sizes, freefall and controlled freefall available, grooved drum or tension roller, API 2c optional. Tell us your rope diameter and length, available flow, whether you need freefall, and your mounting arrangement.
Specifications
| Rated line pull | 15,000 lb (6,804 kg) |
| Gear ratios | 34:1, 41:1 |
| Standard motors | 3.18, 5.1, 6.38, 8.0 CID |
| Unit weight | 270 lb short / 300 lb long (122–136 kg) |
| Rope diameters | 1/2", 9/16", 5/8" (13–16 mm) |
| Drum 04 | 10.63" barrel × 20" flange × 13.5" between flanges |
| Drum 05 | 10.63" barrel × 16.5" flange × 13.5" between flanges |
| Drum 06 | 10.5" barrel × 20" flange × 22.42" between flanges |
| Drum 23 | 10.63" barrel × 18" flange × 13.5" between flanges |
| Drum capacity | 465 ft of 1/2" · 390 ft of 5/8" (layer 5) |
| Freefall | Freefall (FF) or controlled freefall (CF) |
| Cable management | Grooved drum or tension roller |
| API 2c compliant | Yes (optional) |
| Overall length | 27.88" (708 mm) |
| Overall width | 21.75" (552 mm) |
| Height | 22" (559 mm) |
Performance
Layer 1: 15,000 lb at 193 fpm
Layer 5: 10,380 lb at 279 fpm
Rated at 2,605 psi, 80 gpm, 5/8" rope, 6.38 CID motor. Drum capacity per ANSI/ASME. Actual performance varies with your hydraulic system, motor, drum and cable.
