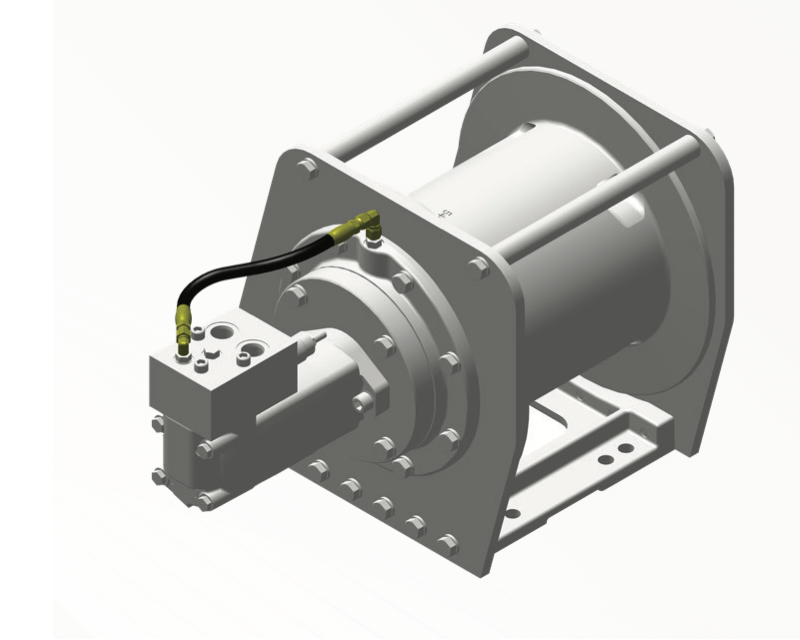

The PD7C is the entry point to the Braden PD range — 7,000 lb rated line pull from a 6.75:1 reduction, in a package that weighs about 415 lb. The defining feature of the PD design is that the gearing sits inside the drum, which keeps the whole unit shorter than a comparable external-gearbox hoist.
Four rope diameters are supported, from 3/8" through 9/16", and two drum sizes. On the larger 02 drum with 3/8" rope you get 310 ft at layer 4.
The simplified drum base is the other reason people specify PD over other ranges — it bolts into more mounting arrangements without custom fabrication, which matters on retrofits.
We stock, install and service these — call with your application and we'll spec it.
Configuration
Two drum sizes, multiple low-speed high-torque motor displacements. Tell us your rope diameter, required length, available flow and mounting arrangement and we'll confirm the right build.
Specifications
| Rated line pull | 7,000 lb (3,175 kg) |
| Gear ratio | 6.75:1 |
| Standard motors | Multiple LSHT displacement options |
| Unit weight | 415 lb (188 kg) |
| Rope diameters | 3/8", 7/16", 1/2", 9/16" (10–14 mm) |
| Drum 01 | 9.63" barrel × 10" flange × 14.25" between flanges |
| Drum 02 | 9.63" barrel × 15" flange × 14.25" between flanges |
| Drum capacity | 310 ft of 3/8" · 221 ft of 9/16" (layer 4) |
| API 2c compliant | No |
| Overall length | 24.91" (633 mm) |
| Overall width | 16.69" (423 mm) |
Performance
Layer 1: 7,000 lb at 112 fpm
Layer 4: 5,260 lb at 149 fpm
Rated at 2,700 psi, 25 gpm, 9/16" rope, 18.7 CID motor. Drum capacity per ANSI/ASME. Actual performance varies with your hydraulic system, motor, drum and cable.
