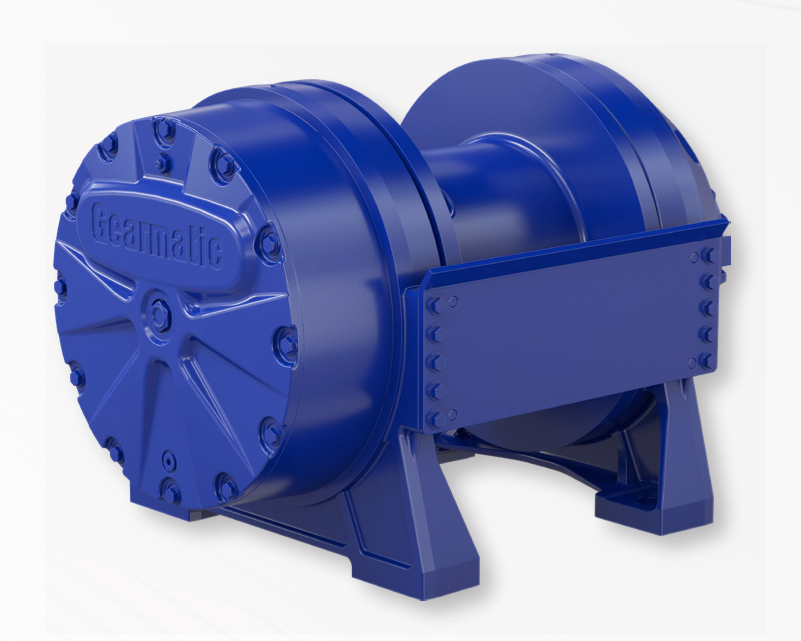

Gearmatic GM50A Planetary Hoist — 50,000 lb Hydraulic Winch
Gearmatic GM50A Planetary Hoist — 50,000 lb Hydraulic Winch
The GM50A is the largest unit in the GM series: 50,000 lb rated line pull at a 108:1 reduction. It's a different class of machine from the rest of the range, and the numbers show it — 2,160 to 2,580 lb of winch, a 14" or 18" drum barrel, and rope options up to 1-1/4".
Line speed at layer 1 is 69 fpm in equal speed reverse, which is what 108:1 buys you. This is a heavy-lift unit, not a fast one. In high speed reverse the reel-out jumps to 324 fpm — 4.7× reel-in — so recovery is quick even though the working stroke is deliberate.
Three drum configurations are available, from 177 ft of 1-1/4" rope on the 01 up to 594 ft on the 32. Rope diameter runs from 9/16" through 1-1/4" depending on how the unit is specified.
Given the weight and the loads involved, mounting structure and hydraulic supply both need reviewing before ordering. Send us the vessel or machine details and we'll work through it.
Configuration
Available overwound (CCW) or underwound (CW), in equal speed or high speed reverse, with the 01, 02 or 32 drum. Tell us your rope diameter, required length and mounting orientation and we'll confirm the right build.
Specifications
| Rated line pull | 50,000 lb (22,680 kg) |
| Gear ratio | 108:1 |
| Motor | 12.03 CID |
| Unit weight | 2,160–2,580 lb (980–1,170 kg) |
| Rope diameters | 9/16" to 1-1/4" (14–32 mm) |
| Drum 01 | 14" barrel × 23.75" flange × 14" between flanges |
| Drum 02 | 18" barrel × 30" flange × 22" between flanges |
| Drum 32 | 14" barrel × 30" flange × 22" between flanges |
| Rope storage | 01 — 177 ft · 02 — 440 ft · 32 — 594 ft (1-1/4" rope) |
| Overall length | 42.72" (1,085 mm) |
| Overall width | 26.50" (673 mm) |
| Height | 26.43" (671 mm) |
Performance
Equal speed reverse, layer 1: 50,000 lb at 69 fpm
High speed reverse, layer 1: 50,000 lb at 324 fpm; reel-out runs 4.7× reel-in speed
Rated at 2,500 psi, 115 gpm, 1-1/4" rope, 12.03 CID motor. Actual performance varies with your hydraulic system, motor, drum and cable.
